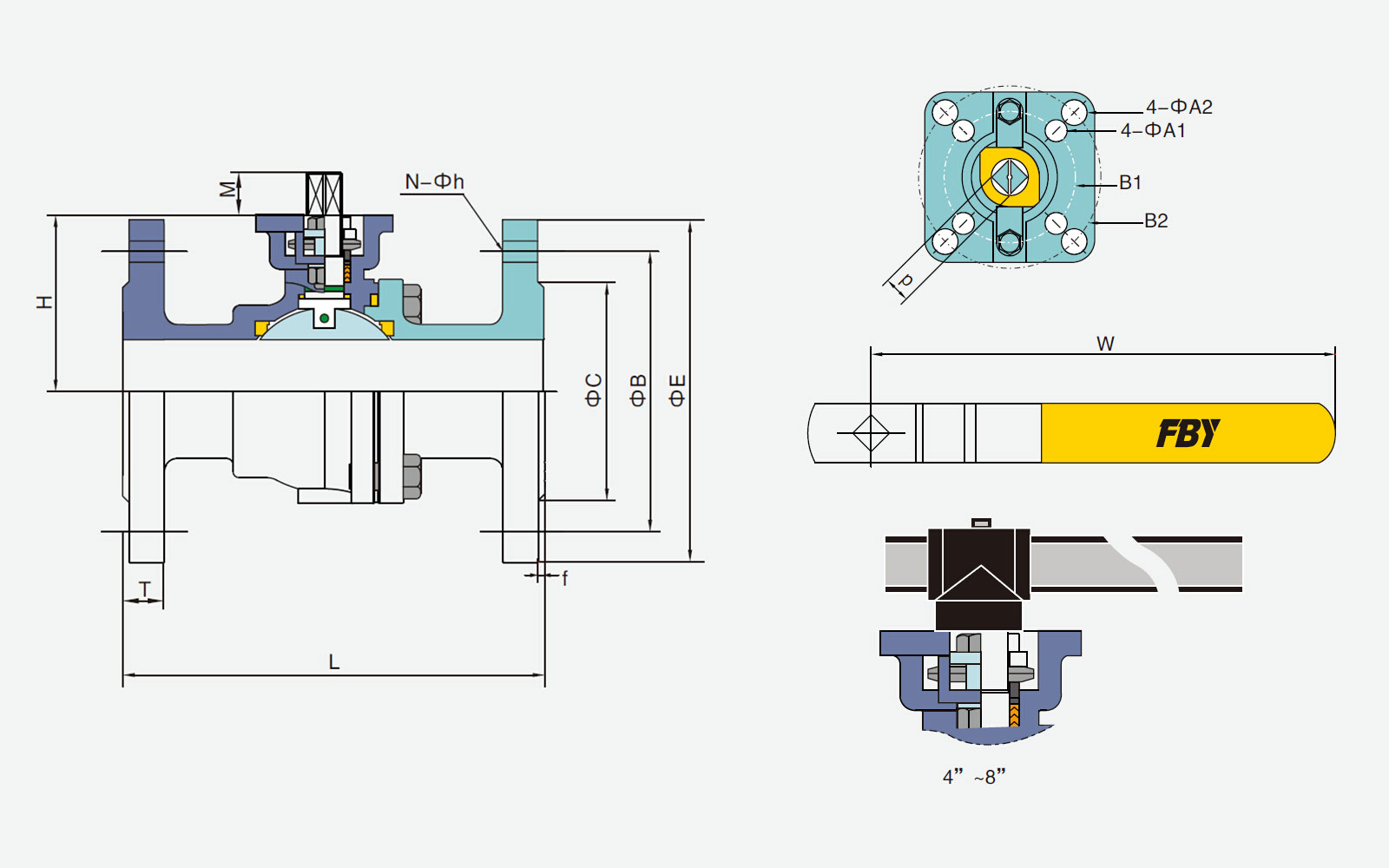

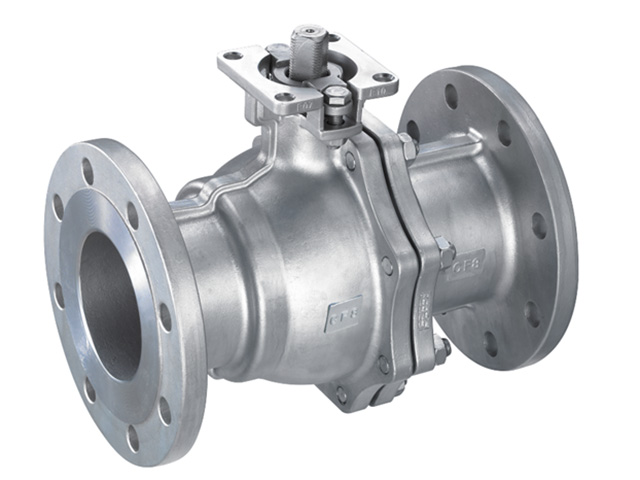

設計標準 : ASME B16.34 API 608
結構長度 : ASME B 16.10
|
Class 150LB
|
NPS (in) |
ΦD
|
L |
ΦE
|
ΦB |
ΦC
|
T |
f |
N-Φh |
H |
W |
M |
P |
ΦA(chǔ)1
|
ΦA(chǔ)2
|
B1 |
B2 |
|
1/2" |
13 |
108 |
90 |
60.3 |
34.9 |
11.6 |
2 |
4-16 |
51 |
135 |
9 |
9 |
7 |
8 |
36 |
50 |
|
3/4" |
19 |
117 |
100 |
69.9 |
42.9 |
13.2 |
2 |
4-16 |
55 |
135 |
9 |
9 |
7 |
8 |
36 |
50 |
|
1" |
25 |
127 |
110 |
79.4 |
50.8 |
14.7 |
2 |
4-16 |
68 |
170 |
11 |
11 |
7 |
8 |
42 |
50 |
|
1-1/4" |
32 |
140 |
115 |
88.9 |
63.5 |
16.3 |
2 |
4-16 |
74 |
170 |
11 |
11 |
7 |
8 |
42 |
50 |
|
1-1/2" |
38 |
165 |
125 |
98.4 |
73 |
17.9 |
2 |
4-16 |
82 |
200 |
14 |
14 |
8 |
10 |
50 |
70 |
|
2" |
51 |
178 |
150 |
120.7 |
92.1 |
19.5 |
2 |
4-19 |
92 |
200 |
14 |
14 |
8 |
10 |
50 |
70 |
|
2-1/2" |
64 |
190 |
180 |
139.7 |
104.8 |
22.7 |
2 |
4-19 |
116 |
300 |
17 |
17 |
10 |
12 |
70 |
102 |
|
3" |
76 |
203 |
190 |
152.4 |
127 |
24.3 |
2 |
4-19 |
129 |
300 |
17 |
17 |
10 |
12 |
70 |
102 |
|
4" |
102 |
229 |
230 |
190.5 |
157.2 |
24.3 |
2 |
8-19 |
148 |
400 |
22 |
22 |
non |
12 |
non |
102 |
|
5" |
127 |
356 |
255 |
215.9 |
185.7 |
24.3 |
2 |
8-22 |
184 |
800 |
27 |
27 |
14 |
18 |
125 |
140 |
|
6" |
152 |
394 |
280 |
241.3 |
215.9 |
25.9 |
2 |
8-22 |
206 |
800 |
27 |
27 |
14 |
18 |
125 |
140 |
|
8" |
203 |
457 |
345 |
298.5 |
269.9 |
29 |
2 |
8-22 |
254 |
800 |
27 |
27 |
18 |
22 |
140 |
165 |
Class 300LB
|
NPS (in) |
ΦD |
L |
ΦE |
ΦB |
ΦC |
T |
f |
N-Φh |
H |
W |
M |
P |
ΦA(chǔ)1 |
ΦA(chǔ)2 |
B1 |
B2 |
|
1/2" |
13 |
140 |
95 |
66.7 |
34.9 |
14.7 |
2 |
4-16 |
51 |
135 |
9 |
9 |
7 |
8 |
36 |
50 |
|
3/4" |
19 |
152 |
115 |
82.6 |
42.9 |
16.3 |
2 |
4-19 |
55 |
135 |
9 |
9 |
7 |
8 |
36 |
50 |
|
1" |
25 |
165 |
125 |
88.9 |
50.8 |
17.9 |
2 |
4-19 |
68 |
170 |
11 |
11 |
7 |
8 |
42 |
50 |
|
1-1/4" |
32 |
178 |
135 |
98.4 |
63.5 |
19.5 |
2 |
4-19 |
74 |
170 |
11 |
11 |
7 |
8 |
42 |
50 |
|
1-1/2" |
38 |
190 |
155 |
114.3 |
73 |
21.1 |
2 |
4-22 |
82 |
200 |
14 |
14 |
8 |
10 |
50 |
70 |
|
2" |
51 |
216 |
165 |
127 |
92.1 |
22.7 |
2 |
8-19 |
92 |
200 |
14 |
14 |
8 |
10 |
50 |
70 |
|
2-1/2" |
64 |
241 |
190 |
149.2 |
104.8 |
25.9 |
2 |
8-22 |
116 |
300 |
17 |
17 |
10 |
12 |
70 |
102 |
|
3" |
76 |
283 |
210 |
168.3 |
127 |
29 |
2 |
8-22 |
129 |
300 |
17 |
17 |
10 |
12 |
70 |
102 |
|
4" |
102 |
305 |
255 |
200 |
157.2 |
32.2 |
2 |
8-22 |
148 |
400 |
22 |
22 |
non |
12 |
non |
102 |
|
5" |
127 |
381 |
280 |
235 |
185.7 |
35.4 |
2 |
8-22 |
184 |
800 |
27 |
27 |
14 |
18 |
125 |
140 |
|
6" |
152 |
403 |
320 |
269.9 |
215.9 |
37 |
2 |
12-22 |
206 |
800 |
27 |
27 |
14 |
18 |
125 |
140 |
|
8" |
203 |
502 |
380 |
330.2 |
269.9 |
41.7 |
2 |
12-25 |
254 |
800 |
27 |
27 |
18 |
22 |
140 |
165 |
